CASE BE QUIET! SHADOW BASE 800 BLACK
CASE BE QUIET! SHADOW BASE 800 BLACK - Figura 2
CASE BE QUIET! SHADOW BASE 800 BLACK - Figura 3
CASE BE QUIET! SHADOW BASE 800 BLACK - Figura 4
CASE BE QUIET! SHADOW BASE 800 BLACK - Figura 5
,

CASE BE QUIET! SHADOW BASE 800 BLACK

Gjendja:

S’ka stok

CASE BE QUIET! SHADOW BASE 800 BLACK

  • Exceptionally high airflow thanks to an open mesh design
  • 3 Pure Wings 3 140mm PWM fans offer high airflow with quiet operation
  • Spacious design offers enough room for even the largest components
  • Simple and tool-less HDD and SSD installation
  • Rotatable PCIe slots enable vertical installation of GPUs
  • Easy to use cable bar for a neat and tidy look
  • Tinted and tempered glass side window allows a superb view

18,000 L

S’ka stok

CASE BE QUIET! SHADOW BASE 800 BLACK

General data

Model Shadow Base 800
Color option Black
Motherboard compatibility E-ATX / ATX / M-ATX / Mini-ITX

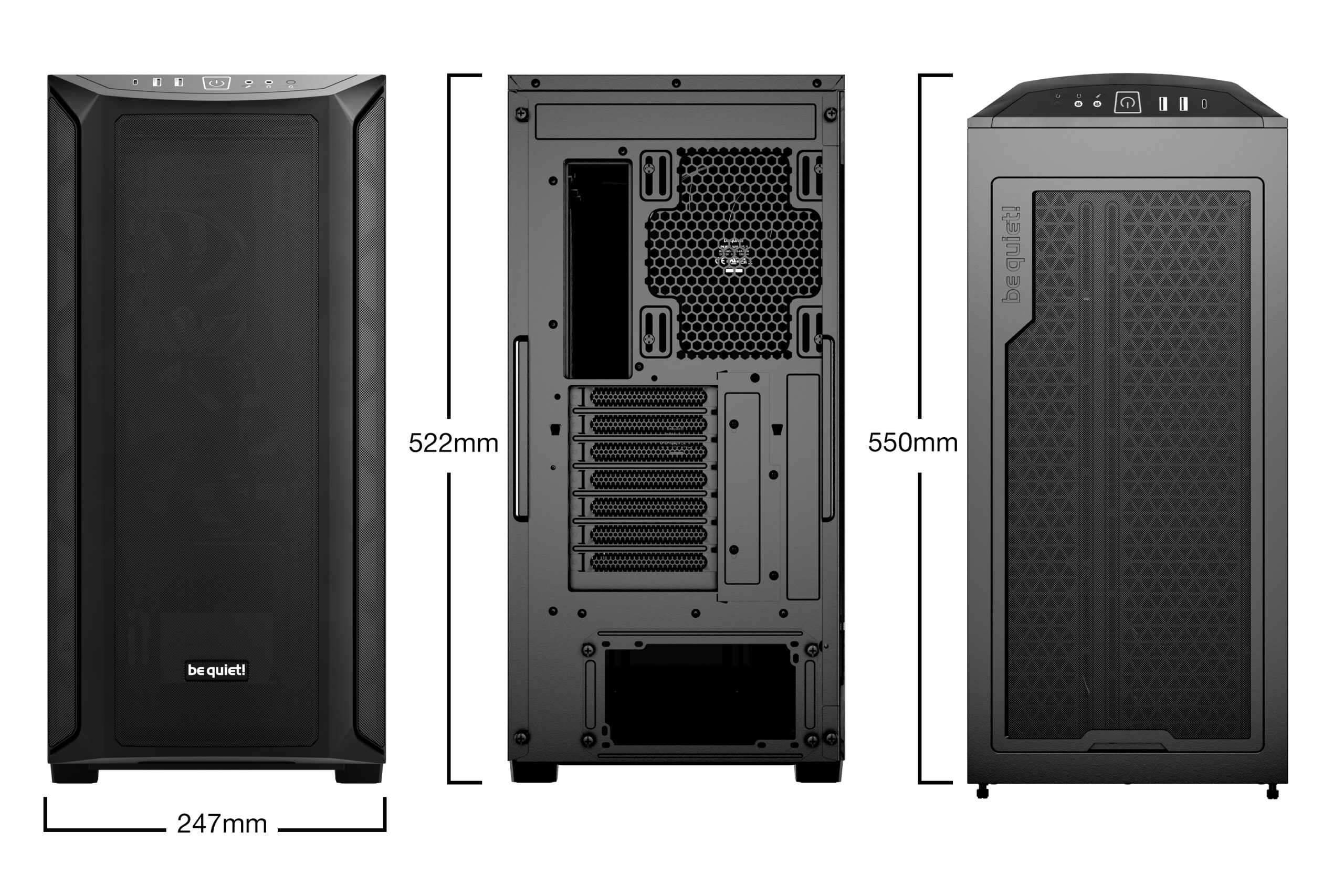

Case size excl. stands (L x W x H), (mm) 550 x 247 x 503
Case size incl. stands (L x W x H), (mm) 550 x 247 x 522
Volume (l) 62.74
PSU form factor ATX PS/2
Net weight (kg) 11.7
Expansion slots 7

Infographics

Pre-installed fans

Fan at top 1x Pure Wings 3 140mm PWM
Fan at front 1x Pure Wings 3 140mm PWM
Fan at side –
Fan at rear 1x Pure Wings 3 140mm PWM
Fan at bottom –
Dimensions (L x W x H), (mm) Front: 140 x 140 x 25 / Rear: 140 x 140 x 25 / Top: 140 x 140 x 25
Fan speed at 100% PWM / 12V (rpm) 1200
Airflow at 100% PWM / 12V (CFM / m3/h) 57.4 / 97.5
Air Pressure at 100% PWM / 12V (mm H2O) 0.96
Noise level at 100% PWM / 12V (dB(A)) 21.9
Voltage range (V DC) 12
Input power (W) 3.6
Input current (A) 0.3
Connector 4-pin PWM
Lifespan (h / 25°C) 80,000
Fan controller –

Maximum fan installation

Maximum fans 8
Top (mm) 3x 140 / 3x 120
Front (mm) 3x 140 / 3x 120
Side (mm) –
Rear (mm) 1x 140 / 1x 120
Bottom (mm) 1x 140 / 1x 120
PSU shroud –

Optional radiator installation

Top (mm) 120 / 140 / 240 / 280 / 360 / 420
Front (mm) 120 / 140 / 240 / 280 / 360 / 420
Side (mm) –
Rear (mm) 120
Bottom (mm) –

PSU compatibility

Maximum dimensions excl. bottom fan (mm) 305
Maximum dimensions incl. bottom fan (mm) 260

Graphics card

HDD cage (in height of graphics card) installed (mm) 430
HDD cage (in height of graphics card) removed (mm) 430
Maximum PCIe slots with vertical graphics card (pcs.) 7

Drive bay capacity

5.25 bays (pcs.) –
3.5 slots (scope of delivery) 2
3.5 slots (max.) 4
2.5 slots (scope of delivery) 4
2.5 slots (max.) 8

Cooling

Max.construction height of CPU cooler unit (mm) 180
Airflow channel Front / Top / Rear / Bottom

Lighting

LED illumination –
LEDs (pcs.) –
LED type –
LEDs synchronizable with controller/motherboard –

I/O Panel

USB 3.2 Gen. 2 Type C 1
USB 3.2 Type A 2
USB 2.0 –
HD Audio I/O Mic + Audio
Qi charger / Quick Charging Option (W) –

Insulation and damping

Top panel insulation mats –
Front panel insulation mats –
Side panel insulation mats ✓
Anti-vibration decoupled HDD ✓
Anti-vibration decoupled fan –
Anti-vibration decoupled PSU ✓
Anti-vibration decoupled motherboard-tray –

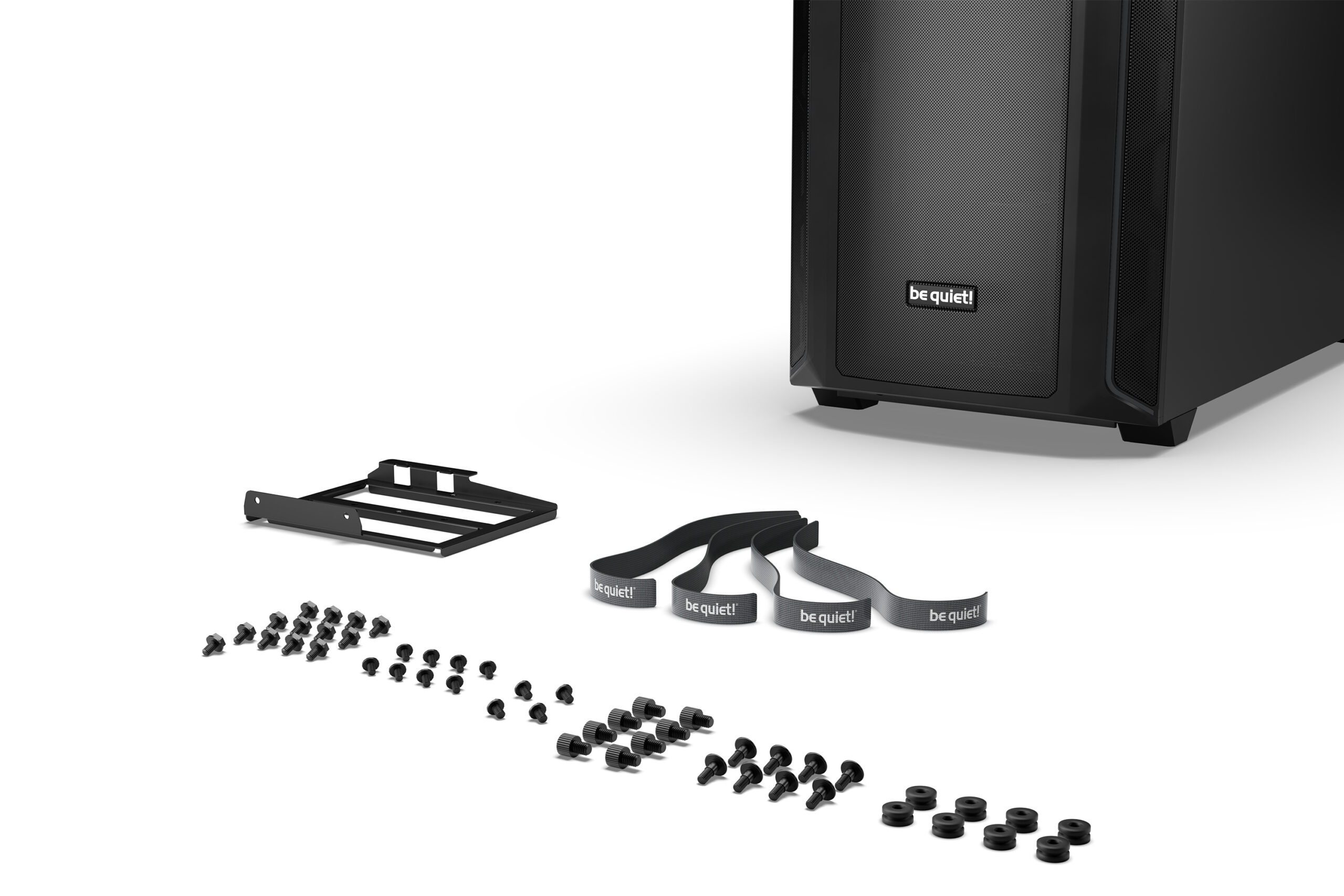

Scope of delivery

Screw set (Drives/Motherboard) ✓
Additional standoffs (pcs.) –
SSD bracket for PSU shroud –
LED strips (pcs.) 0
Cable ties (pcs.) 6 (Velcro) / 4 (Velcro)
Screw box –
VGA holder –
VGA holder for inverted layout –
Mesh Front Panel –
ODD Bracket –
Fan / Radiator bracket for multi mounting panel –

Removeable dust filters

Top –
Front 1
Side –
Bottom 1

Material

Top cover ABS
Front panel ABS
Side panel Steel
Side panel window Tempered glass
Stands ABS

Safety certification

Approvals CE, UKCA
Kategori: ,
Peshë 1 g/kg
