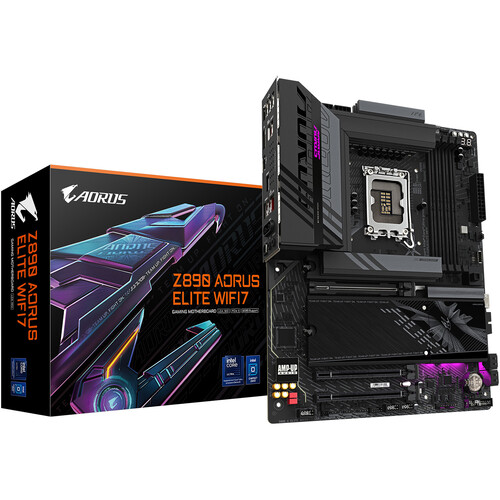

MBO GIGABYTE Z890 A ELITE WIFI 7
MBO GIGABYTE Z890 A ELITE WIFI 7 - Figura 2

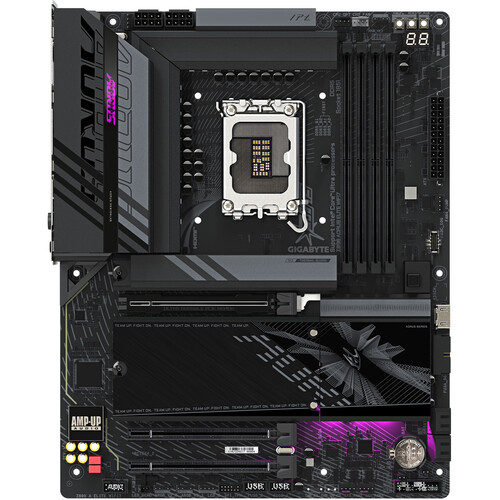

MBO GIGABYTE Z890 A ELITE WIFI 7 - Figura 3

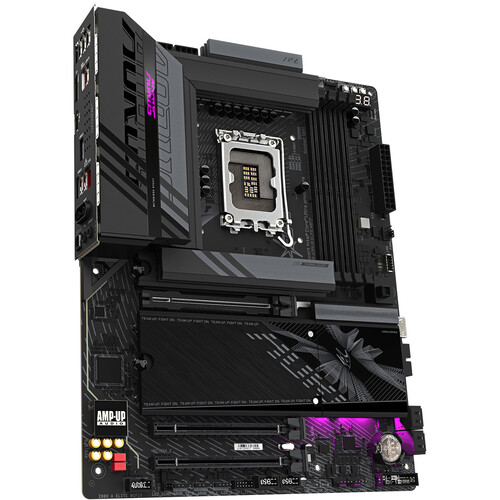

MBO GIGABYTE Z890 A ELITE WIFI 7 - Figura 4
,

MBO GIGABYTE Z890 A ELITE WIFI 7

Gjendja:

Ka stok

MBO GIGABYTE Z890 A ELITE WIFI 7

  • ATX Form Factor
  • Z890 Chipset
  • LGA 1851 Socket
  • Intel Core Ultra Series 2 CPU Support
  • 4 x DDR5 DIMM Slots
  • 1 x PCIe 5.0 x16 with PCIe UD Slot X
  • 2 x PCIe 4.0 x4
  • 4 x M.2 | 4 x SATA
  • 2.5GbE LAN | Wi-Fi 7 | Bluetooth 5
  • Support for Windows 11 (64-Bit)

29,000 L

Ka stok

MBO GIGABYTE Z890 A ELITE WIFI 7

  • ATX Form Factor
  • Z890 Chipset
  • LGA 1851 Socket
  • Intel Core Ultra Series 2 CPU Support
  • 4 x DDR5 DIMM Slots
  • 1 x PCIe 5.0 x16 with PCIe UD Slot X
  • 2 x PCIe 4.0 x4
  • 4 x M.2 | 4 x SATA
  • 2.5GbE LAN | Wi-Fi 7 | Bluetooth 5
  • Support for Windows 11 (64-Bit)

Designed for the Intel Core Ultra Series 2 processors, the Gigabyte Z890 AORUS ELITE WIFI7 LGA 1851 ATX Motherboard

features the LGA 1851 socket and Intel Z890 chipset for optimal performance.

The motherboard has a 16+1+2 twin digital VRM design.

With four DDR5-5600 slots, one PCIe 5.0 x16 slot, two PCIe 4.0 x4 slots, four M.2 slots, and four SATA slots, you’ll be able to build a powerful gaming PC.

With EZ-Latch, installing a graphics card and M.2 SSDs with heat sinks is user-friendly and doesn’t require tools. For online connectivity, the motherboard provides fast 2.5GbE LAN and Wi-Fi 7 (802.11be).

AORUS AI SNATCH
Unleash optimal performance with one-click activation. With just a single click, unleash the full potential of DDR5 memory, instantly boosting performance for gaming and creative content.
Get enhanced computing power, fast AI performance, EZ to Peak, safe overclocking, and less power usage.
Wi-Fi 7
Wi-Fi 7 introduces support for expansive 320/160 MHz channels, dramatically increasing bandwidth for fast data transfer speeds.

Leveraging 4K-QAM technology, Wi-Fi 7 elevates data throughput, enabling fast file transfers and buffer-free streaming.

Wi-Fi 7’s MLO (Multi-Link Operation) technology allows strategic bandwidth allocation – dedicating 2.4 GHz for streaming and 5/6 GHz for gaming, resulting in an interruption-free network experience.

With low latency, Wi-Fi 7 minimizes delays, making it the ideal choice for time-sensitive applications, such as video conferencing and competitive online gaming.

2.5GbE LAN
Supercharge your online gaming with the 2.5GbE RJ45 LAN jack.
With fast speeds, minimal lag, and optimal performance, you’ll be able to elevate your gaming rig for online competition.
EZ-Latch Designs

PCIe EZ-Latch Plus

  • Easy ejection with a single slick for graphics cardsM.2 EZ-Latch Click
  • Tool-less installation for M.2 heat sinkM.2 EZ-Latch Plus
  • Tool-less installation for M.2 SSDs
Additional Key Features
  • Supports Intel Core Ultra processors (Series 2)
  • Digital twin 16+1+2 phases VRM solution
  • D5 Bionic Corsa for infinite memory performance

MBO GIGABYTE Z890 A ELITE WIFI 7

Chipset
Intel Z890
CPU Socket
LGA 1851
Memory Slots
4x 288-Pin
Memory Support
DDR5 5800, 6000, 6200, 6400, 6600, 6800, 7000, 7200, 7400, 7600, 7800, 7900, 7950, 8000, 8200, 8266, 8400, 8600, 8800 MT/s
Storage Slots
1x M.2 (M Key) 2280, 22110, 2580, 25110 (PCIe 5.0 x4, PCIe 5.0 x2)
1x M.2 (M Key) 2280, 22110 (PCIe 4.0 x4, PCIe 4.0 x2)
1x M.2 (M Key) 2280, 22110, 2580, 25110 (PCIe 4.0 x4, PCIe 4.0 x2)
1x M.2 (M Key) 2280, 22110 (PCIe 4.0 x4, SATA (Unspecified))
Expansion Slots
1x PCIe 5.0 x16
2x PCIe 4.0 x16 (x4 mode)
Wi-Fi
Wi-Fi 7 (802.11be) with MU-MIMO Support
Form Factor
ATX
CPU
Chipset
Intel Z890
CPU Socket
LGA 1851

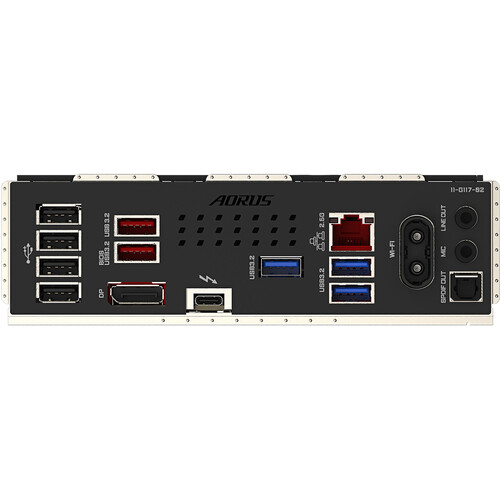

Back Panel I/O
USB
2x USB-A (USB 3.1/3.2 Gen 2)
3x USB-A (USB 3.0 / 3.1/3.2 Gen 1)
4x USB-A (USB 2.0)
Thunderbolt
1x Thunderbolt 4
Display
1x DisplayPort
Audio
2x 1/8″ / 3.5 mm
1x S/PDIF
Ethernet / Controller
1x Realtek 2.5Gigabit
Wi-Fi Antenna
1x Connector
Memory
Memory Slots
4x 288-Pin
Memory Support
DDR5 5800, 6000, 6200, 6400, 6600, 6800, 7000, 7200, 7400, 7600, 7800, 7900, 7950, 8000, 8200, 8266, 8400, 8600, 8800 MT/s
Maximum Capacity
256 GB
Channel Architecture
Dual Channel
ECC Support
Non-ECC, ECC Unbuffered
Storage Expansion
SATA
4x SATA III
Storage Slots
1x M.2 (M Key) 2280, 22110, 2580, 25110 (PCIe 5.0 x4, PCIe 5.0 x2)
1x M.2 (M Key) 2280, 22110 (PCIe 4.0 x4, PCIe 4.0 x2)
1x M.2 (M Key) 2280, 22110, 2580, 25110 (PCIe 4.0 x4, PCIe 4.0 x2)
1x M.2 (M Key) 2280, 22110 (PCIe 4.0 x4, SATA (Unspecified))
Optane Memory Support
No
RAID Support
RAID 0, 1, 5, 10 (M.2)
RAID 0, 1, 5, 10 (SATA)
Internal I/O
Expansion Slots
1x PCIe 5.0 x16
2x PCIe 4.0 x16 (x4 mode)
USB
1x USB 3.1/3.2 Gen 2 Header (Supports 1 USB-C Port)
1x USB 3.0 / 3.1/3.2 Gen 1 Header (Supports 2 USB-A Port)
2x USB 2.0 Header (Supports 4 USB-A Port)
Air Cooling
1x 4-Pin CPU
3x 4-Pin System
Liquid Cooling
2x 4-Pin Pump
Power Connectors
1x 24-Pin Mainboard
LED Header
4x RGB
Audio
1x S/PDIF
Diagnostics
Clear CMOS, Flash BIOS, Power, Reset
BIOS
ROM
256 Mb
Front Panel I/O
Front Panel I/O
USB 3.0 / 3.1/3.2 Gen 1
Audio
Audio Codec
Realtek (7.1-Channel)
DAC
No
Wireless
Wi-Fi
Wi-Fi 7 (802.11be) with MU-MIMO Support
Bluetooth
5.4
Software
OS Compatibility
Windows 11
Physical
Form Factor
ATX
Dimensions
12.0 x 9.6″ / 305 x 244 mm
