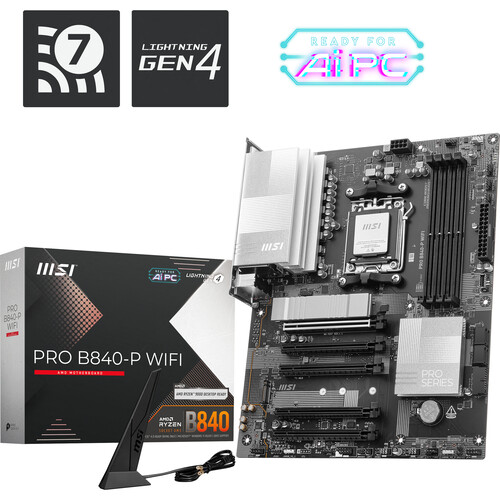

MBO MSI PRO B840-P WIFI AM5

Name: MBO MSI PRO B840-P WIFI AM5
SKU: 22564
Price: 18000 ALL
Availability: InStock

Gjendja:

Ka stok

MBO MSI PRO B840-P WIFI AM5

18,000 L

Ka stok

MBO MSI PRO B840-P WIFI AM5

Chipset	AMD B840
CPU Socket	AM5
Memory Slots	4x 288-Pin
Memory Support	DDR5 MT/s
Storage Slots	1x M.2 (M Key) 2260, 2280 (PCIe 4.0 x4) 1x M.2 (M Key) 2260, 2280, 22110 (PCIe 4.0 x4, PCIe 3.0 x4, PCIe 3.0 x2)
Expansion Slots	1x PCIe 4.0 x16 1x PCIe 3.0 x4 3x PCIe 3.0 x1
Wi-Fi	Wi-Fi 7 (802.11be); Tri-Band (2.4, 5, & 6 GHz)
Form Factor	ATX

CPU

Chipset	AMD B840
CPU Socket	AM5

Back Panel I/O

USB	1x USB-C (USB 3.1/3.2 Gen 2) 1x USB-A (USB 3.1/3.2 Gen 2) 4x USB-A (USB 3.0 / 3.1/3.2 Gen 1) 2x USB-A (USB 3.0 / 3.1/3.2 Gen 1)
Thunderbolt	No
Display	1x HDMI
Audio	3x 1/8″ / 3.5 mm
Ethernet / Controller	No
Wi-Fi Antenna	2x Connector
Buttons	BIOS Flashback, Clear CMOS

Memory

Storage Expansion

SATA	4x SATA III
Storage Slots	1x M.2 (M Key) 2260, 2280 (PCIe 4.0 x4) 1x M.2 (M Key) 2260, 2280, 22110 (PCIe 4.0 x4, PCIe 3.0 x4, PCIe 3.0 x2)
RAID Support	RAID 0, 1, 10 (SATA)

Internal I/O

Expansion Slots	1x PCIe 4.0 x16 1x PCIe 3.0 x4 3x PCIe 3.0 x1
USB	1x USB 3.0 / 3.1/3.2 Gen 1 Header (Supports 2 USB-A Port) 2x USB 2.0 Header (Supports 4 USB-A Port)
Air Cooling	1x 4-Pin CPU 4x 4-Pin System
Liquid Cooling	1x 4-Pin Pump
Power Connectors	1x 24-Pin Mainboard 1x 8-Pin ATX
Security	Chassis Intrusion
LED Header	7x RGB

BIOS

ROM

256 Mb

Front Panel I/O

AAFP

Audio

Audio Codec	Realtek ALC897 (7.1-Channel)
DAC	No

Wireless

Wi-Fi	Wi-Fi 7 (802.11be); Tri-Band (2.4, 5, & 6 GHz)
Bluetooth	5.4

Software

OS Compatibility

Windows

Physical

Form Factor	ATX
Dimensions	9.6 x 12″ / 243.8 x 304.8 mm

Peshë	1 g/kg
