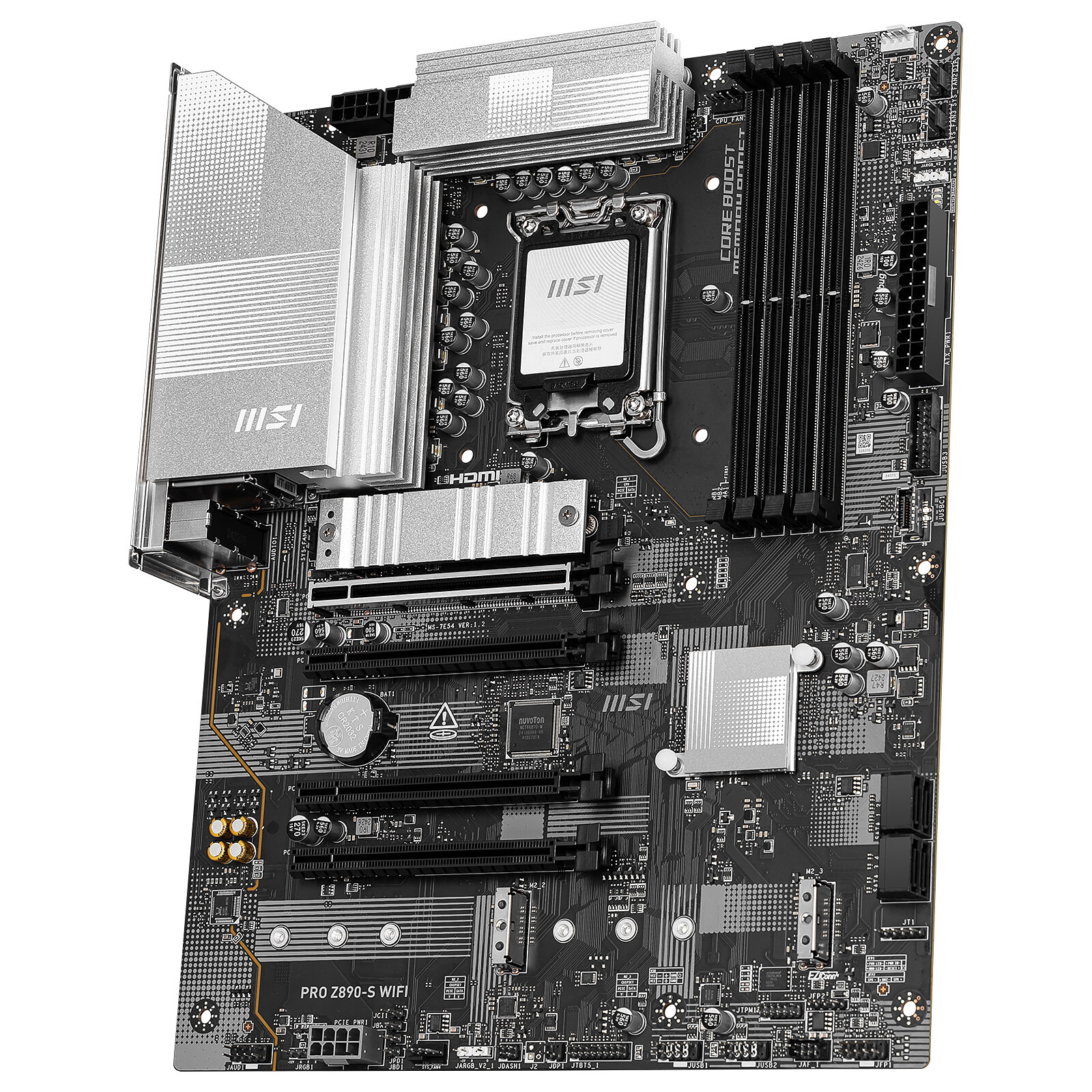

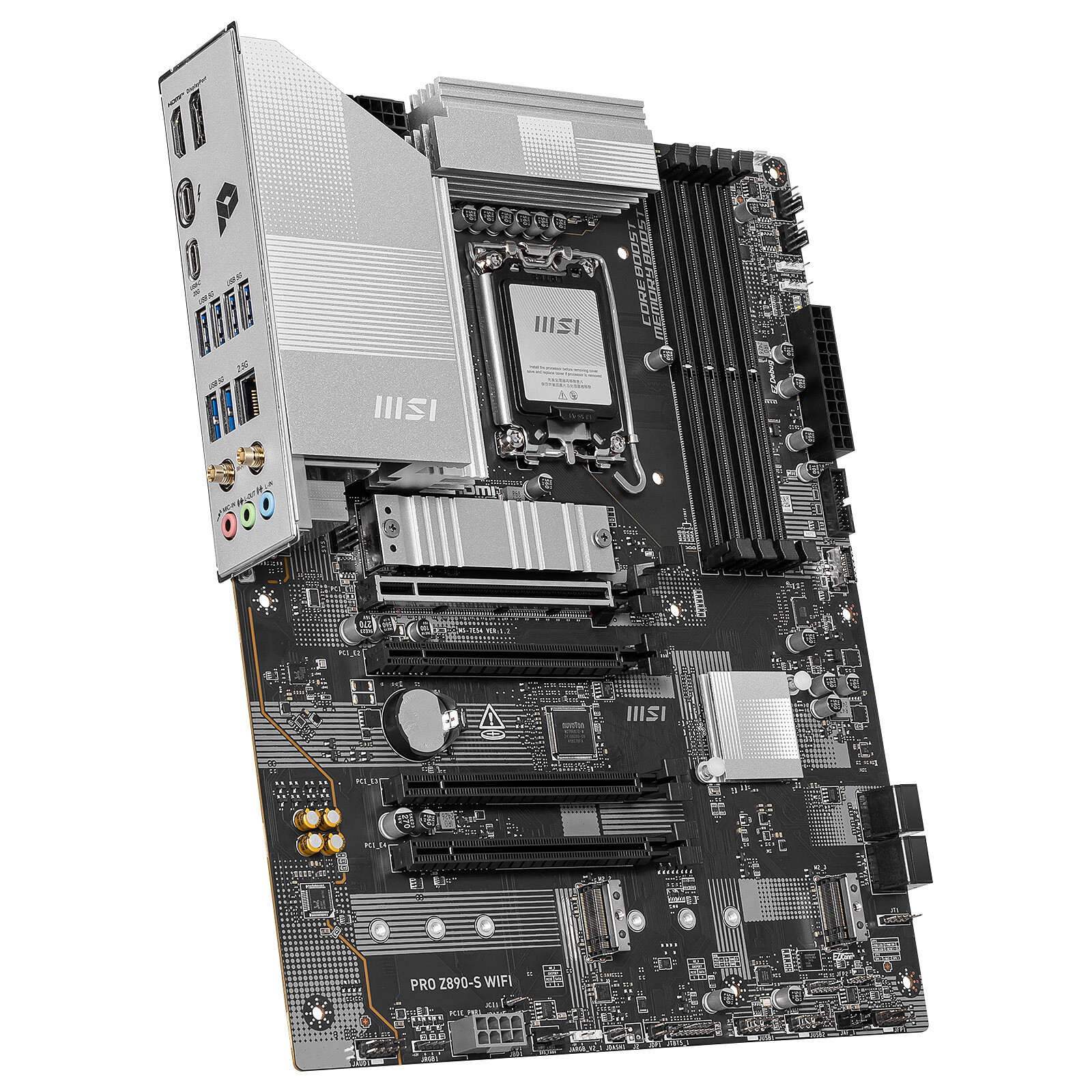

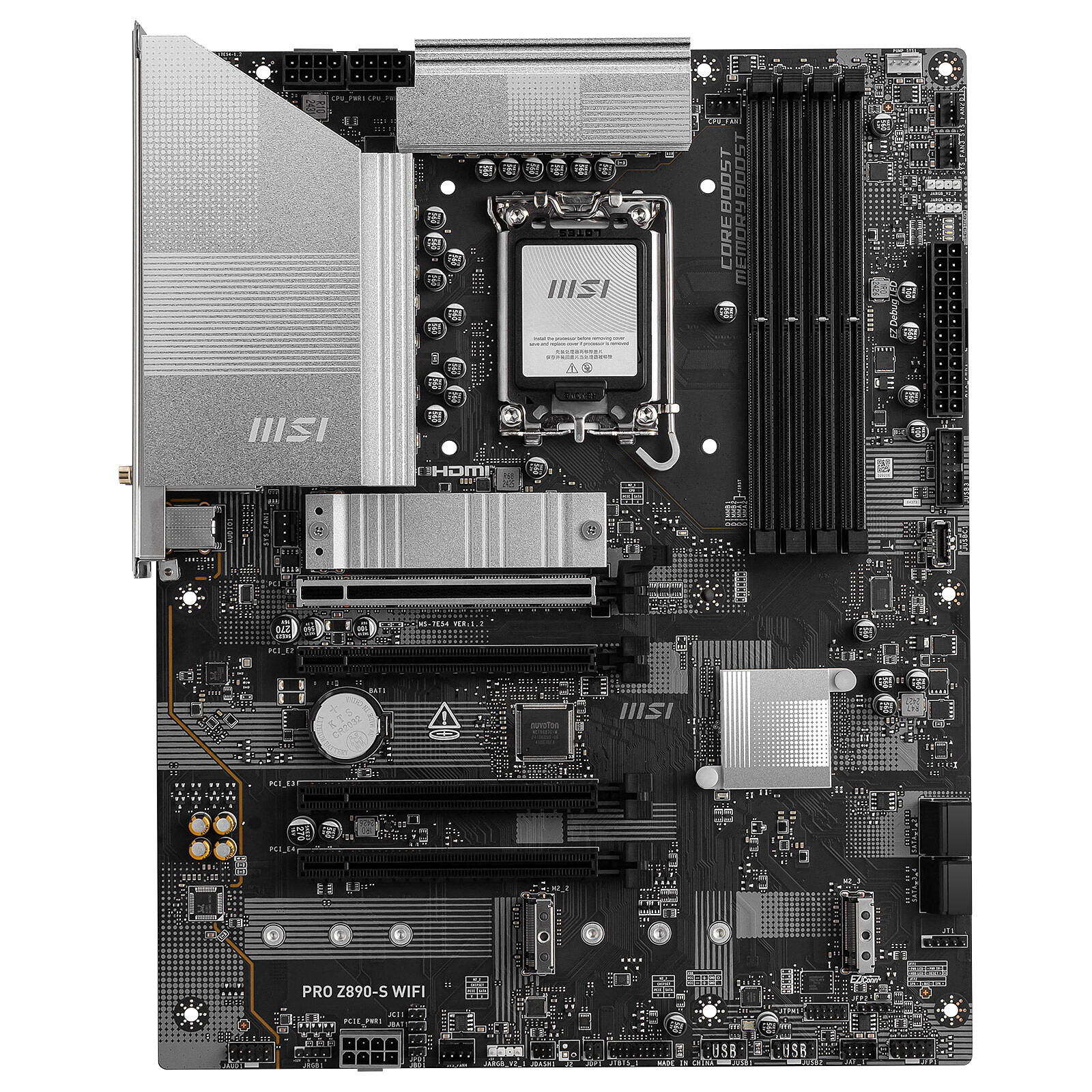

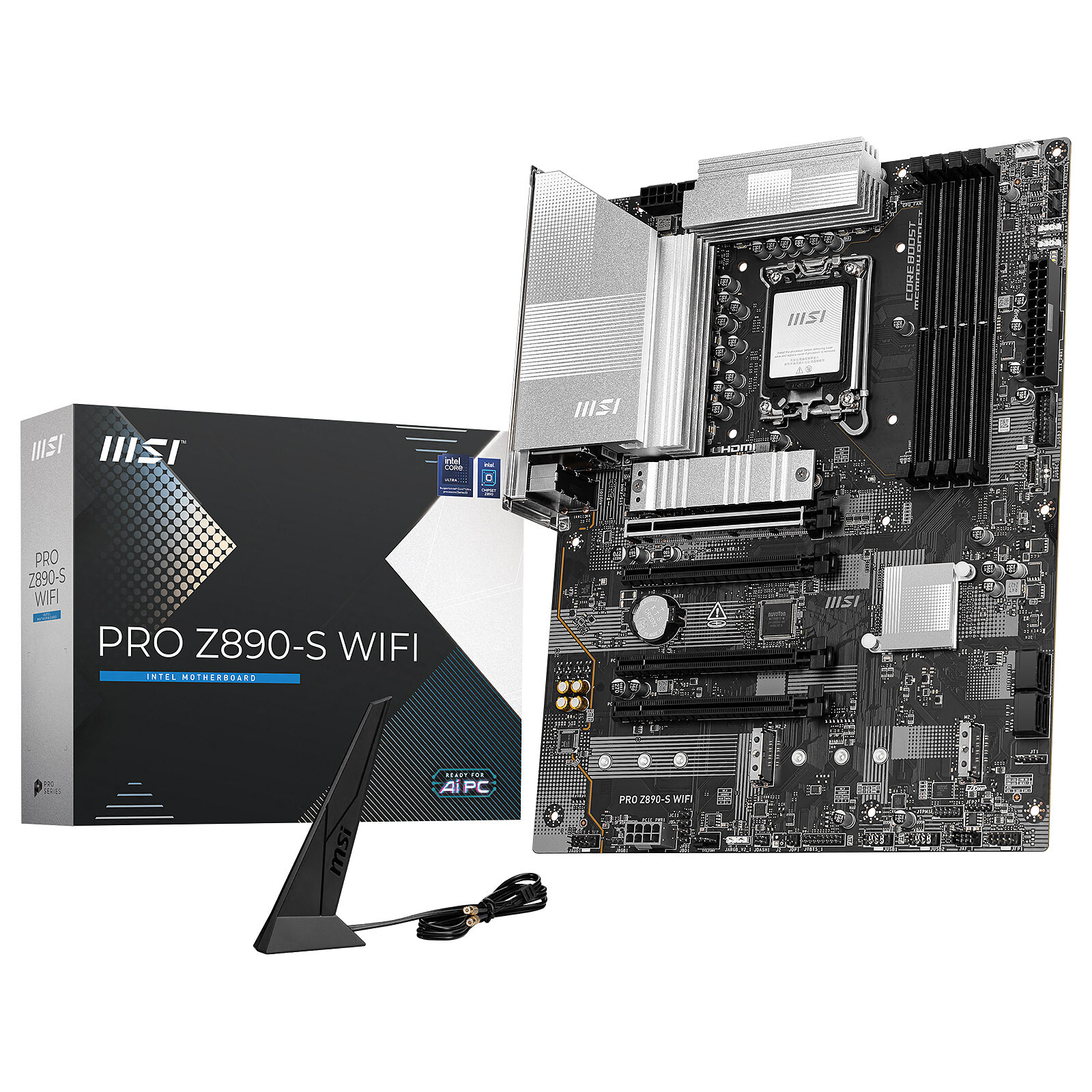

MBO MSI PRO Z890-S WIFI
MBO MSI PRO Z890-S WIFI - Figura 2
MBO MSI PRO Z890-S WIFI - Figura 3
MBO MSI PRO Z890-S WIFI - Figura 4
MBO MSI PRO Z890-S WIFI - Figura 5
,

MBO MSI PRO Z890-S WIFI

Gjendja:

Ka stok

MBO MSI PRO Z890-S WIFI

  • ATX Form Factor
  • Intel Z890 Chipset
  • LGA 1851 Socket
  • 4 x Dual-Channel DDR5 Slots
  • 4 x SATA | M.2 PCIe 5.0 | M.2 PCIe 4.0
  • PCIe 5.0, 4.0 & 3.0 x16 Slots
  • Thunderbolt 4 | USB 3.2 Gen 1, 2 & 2×2
  • Wi-Fi 7 | Bluetooth 5.4 | 2.5GbE
  • Realtek 7.1-Channel Audio
  • Windows 11 (64-Bit) Compatible

22,000 L

Ka stok

MBO MSI PRO Z890-S WIFI

  • ATX Form Factor
  • Intel Z890 Chipset
  • LGA 1851 Socket
  • 4 x Dual-Channel DDR5 Slots
  • 4 x SATA | M.2 PCIe 5.0 | M.2 PCIe 4.0
  • PCIe 5.0, 4.0 & 3.0 x16 Slots
  • Thunderbolt 4 | USB 3.2 Gen 1, 2 & 2×2
  • Wi-Fi 7 | Bluetooth 5.4 | 2.5GbE
  • Realtek 7.1-Channel Audio
  • Windows 11 (64-Bit) Compatible
Processor and Socket Support
Supports Intel Core Ultra processors (Series 2) for the LGA 1851 socket.
Wi-Fi 7 (802.11be)
Wi-Fi 7 (802.11be) has a 320 MHz channel, achieving a maximum transmission speed of 5.8 Gb/s, which is 2.4x faster than Wi-Fi 6/6E.
Thunderbolt 4 Port
Thunderbolt 4 brings Thunderbolt to USB-C at true 40 Gb/s speeds, 8K display support, daisy-chain, multi-port accessory architecture, and USB4 compliant.
20 Gb/s USB 3.2 Gen 2×2
A built-in USB 3.2 Gen 2×2 port offers transmission speeds of 20 Gb/s, which is 4x faster than USB 3.2 Gen 1.
DDR5 Memory
DDR memory performance is enhanced with DDR5 and MSI Memory Boost technology. Dual-channel DDR5 memory is supported at speeds up to 8600+ MT/s (OC).
Enhanced Power Design
12+1+1+1 Duet Rail Power System with P-PAK, dual 8-pin CPU power connectors, Core Boost, Memory Boost, and 6-layer PCB.
Frozr Guard
Extended Heat Sink, MOSFET thermal pads rated for 7W/mK, additional choke thermal pads, and M.2 Shield Frozr are built for high performance and non-stop experience.
EZ DIY
EZ M.2 Clip II, EZ PCIe Clip II, and EZ Antenna
Lightning Gen 5
PCIe 5.0 x4 delivers bandwidth of up to 128 GB/s for compatible M.2 SSDs.
2.5G LAN Network Solution
The 2.5GbE LAN solution delivers an improved network experience.
Extended Heat Sink Design
MSI’s extended PWM heat sink and enhanced circuit design ensures even high-end processors run at full speed.
M.2 Shield FROZR
A strengthened built-in M.2 thermal solution keeps M.2 SSDs safe while preventing throttling, making them run faster.
Pre-installed I/O Shielding
Better EMI protection and more convenience during installation.
Frozr AI Cooling
Detects CPU & GPU temperatures and automatically adjusts the system fan accordingly.
Audio Boost
Reward your ears with studio-grade sound quality for an immersive gaming experience.

MBO MSI PRO Z890-S WIFI

Chipset
Intel Z890
CPU Socket
LGA 1851
Memory Slots
4x 288-Pin
Memory Support
DDR5 4800, 4866, 4933, 5000, 5066, 5100, 5133, 5200, 5300, 5333, 5400,
5600, 5800, 6000, 6133, 6200, 6400, 6600, 6666, 6800, 7000, 7200,
7400, 7600, 7800, 7900, 7950, 8000, 8200, 8266, 8400, 8600 MT/s
Storage Slots
1x M.2 (M Key) 2242, 2260, 2280 (PCIe 5.0 x4)
1x M.2 (M Key) 2242, 2260, 2280 (PCIe 4.0 x4)
1x M.2 (M Key) 2242, 2260, 2280 (PCIe 4.0 x4, SATA III)
Expansion Slots
1x PCIe 5.0 x16
2x PCIe 4.0 x16 (x4 mode)
1x PCIe 3.0 x16 (x1 mode)
Wi-Fi
Wi-Fi 7 (802.11be); Tri-Band (2.4, 5, & 6 GHz) with MU-MIMO Support
Form Factor
ATX
CPU
Chipset
Intel Z890
CPU Socket
LGA 1851

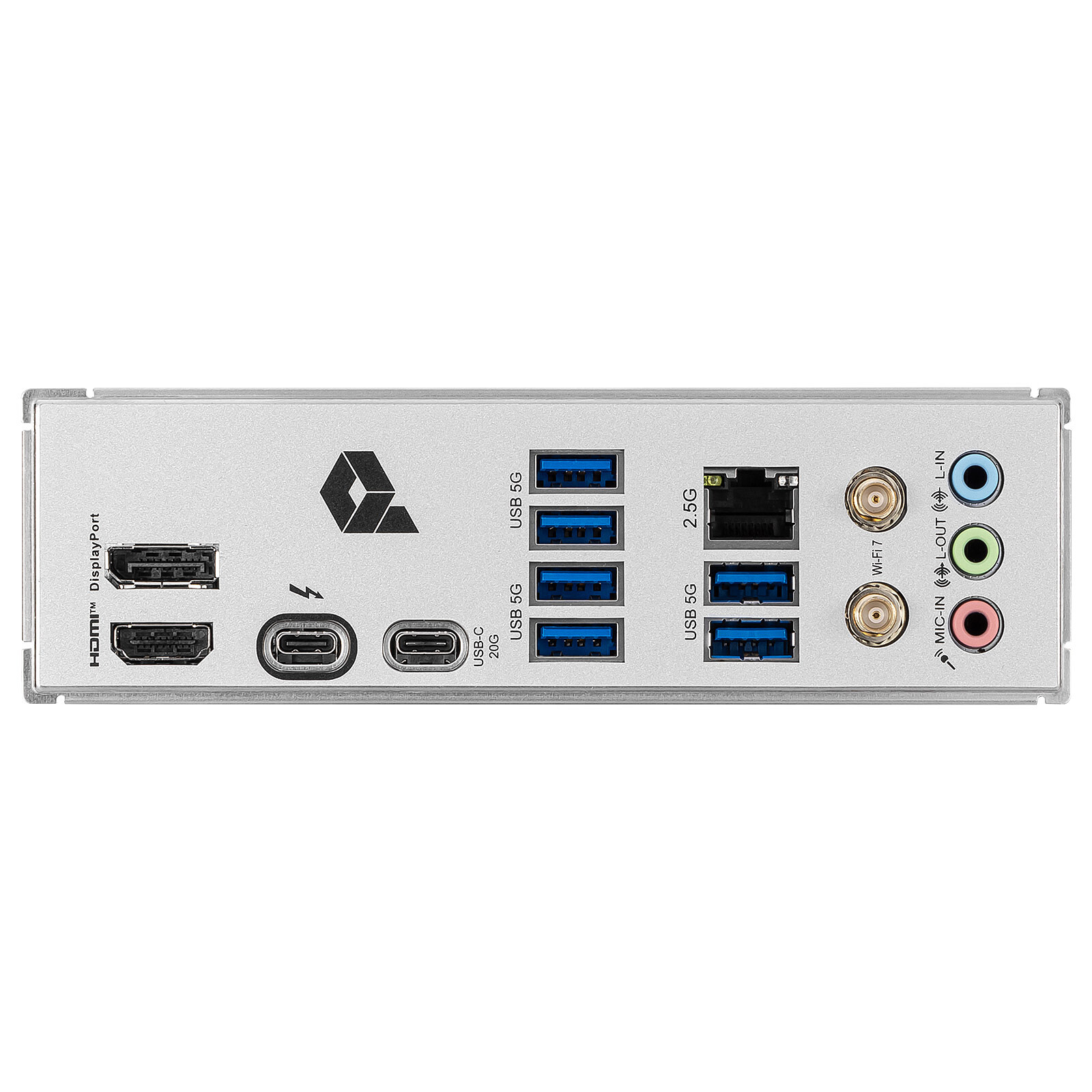

Back Panel I/O
USB
1x USB-C (USB 3.2 Gen 2×2)
6x USB-A (USB 3.0 / 3.1/3.2 Gen 1)
Thunderbolt
1x Thunderbolt 4
Display
1x HDMI 2.1
1x DisplayPort 1.4
Audio
3x 1/8″ / 3.5 mm
Ethernet / Controller
1x Realtek 8125D 2.5Gigabit
Wi-Fi Antenna
2x Connector
Memory
Memory Slots
4x 288-Pin
Memory Support
DDR5 4800, 4866, 4933, 5000, 5066, 5100, 5133, 5200,
5300, 5333, 5400, 5600, 5800, 6000, 6133, 6200, 6400,
6600, 6666, 6800, 7000, 7200, 7400, 7600, 7800, 7900, 7950, 8000, 8200, 8266, 8400, 8600 MT/s
Maximum Capacity
256 GB
Channel Architecture
Dual Channel
ECC Support
Non-ECC Unbuffered
Storage Expansion
SATA
4x SATA III
Storage Slots
1x M.2 (M Key) 2242, 2260, 2280 (PCIe 5.0 x4)
1x M.2 (M Key) 2242, 2260, 2280 (PCIe 4.0 x4)
1x M.2 (M Key) 2242, 2260, 2280 (PCIe 4.0 x4, SATA III)
Optane Memory Support
No
RAID Support
RAID 0, 1, 5, 10 (M.2)
RAID 0, 1, 5, 10 (SATA)
Internal I/O
Expansion Slots
1x PCIe 5.0 x16
2x PCIe 4.0 x16 (x4 mode)
1x PCIe 3.0 x16 (x1 mode)
USB
1x USB 3.2 Gen 2×2 Header (Supports 1 USB-C Port)
1x USB 3.0 / 3.1/3.2 Gen 1 Header (Supports 2 USB-A Port)
2x USB 2.0 Header (Supports 4 USB-A Port)
Air Cooling
1x 4-Pin CPU
4x 4-Pin System
Liquid Cooling
1x 4-Pin Pump
Power Connectors
1x 24-Pin Mainboard
2x 8-Pin CPU
1x 8-Pin ATX
Security
Chassis Intrusion, TPM Header
LED Header
4x RGB
Audio
1x Speaker
Diagnostics
2-Digit Debug LED, Clear CMOS, Flash BIOS
Add-On
1x Tuning Controller
1x Thunderbolt Header
BIOS
ROM
256 Mb
Front Panel I/O
Front Panel I/O
AAFP, USB 3.0 / 3.1/3.2 Gen 1, USB 3.2 Gen 2×2
Audio
Audio Codec
Realtek ALC897 (7.1-Channel)
DAC
No
Wireless
Wi-Fi
Wi-Fi 7 (802.11be); Tri-Band (2.4, 5, & 6 GHz) with MU-MIMO Support
Bluetooth
5.4
Module Support
1 E Key M.2
Software
OS Compatibility
Windows 11 (64-Bit Only)
Physical
Form Factor
ATX
Dimensions
12.0 x 9.60″ / 304.8 x 243.84 mm
Kategori: ,
Peshë 1 g/kg
