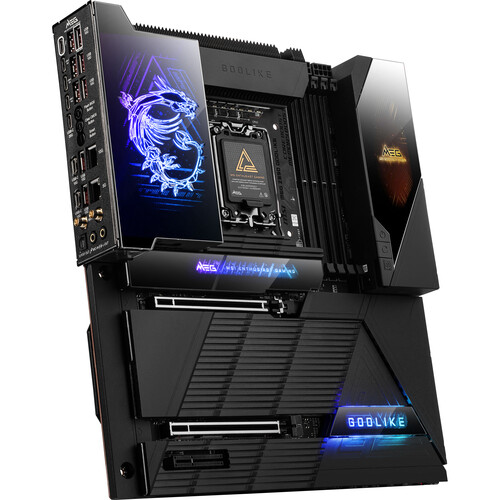

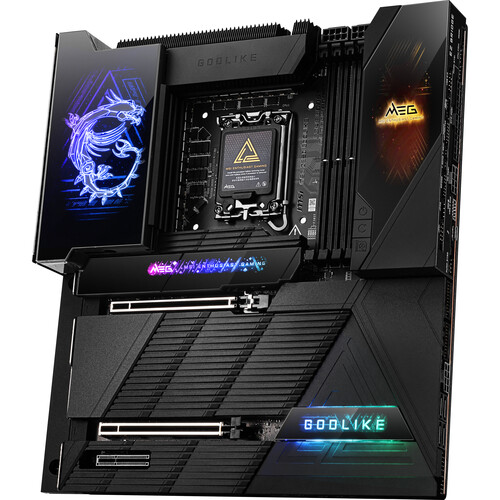

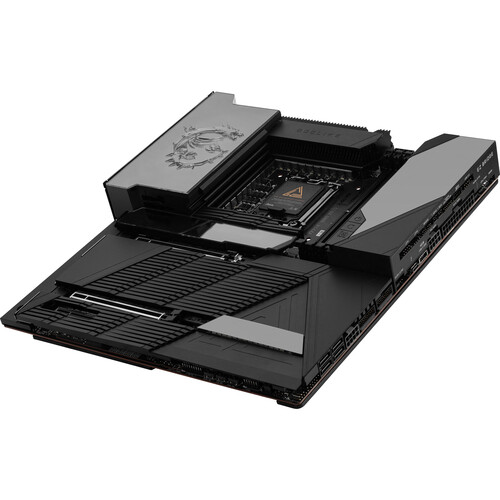

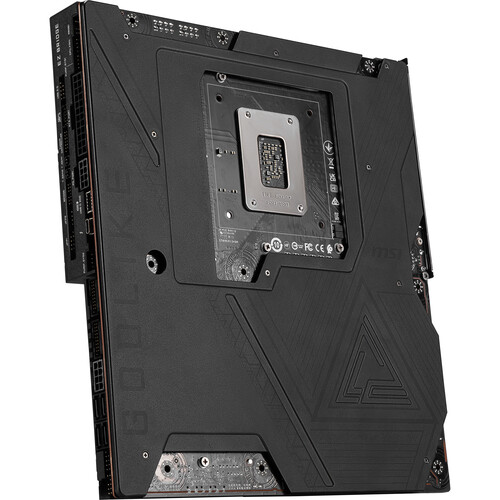

MSI MEG Z890 GODLIKE
MSI MEG Z890 GODLIKE - Figura 2
MSI MEG Z890 GODLIKE - Figura 3
MSI MEG Z890 GODLIKE - Figura 4
MSI MEG Z890 GODLIKE - Figura 5
,

MSI MEG Z890 GODLIKE

Gjendja:

S’ka stok

MSI MEG Z890 GODLIKE

  • E-ATX Form Factor
  • Intel Z890 Chipset
  • LGA 1851 Socket
  • 4 x Dual-Channel DDR5 Slots
  • 4 x SATA III | 8 x M.2 PCIe 5.0 & 4.0
  • PCIe 5.0 x16 | PCIe 4.0 x4
  • Thunderbolt 4 & 5 | USB 3.2 Gen 2 & 2×2
  • Wi-Fi 7 | Bluetooth 5.4 | 5 & 10GbE
  • Realtek 7.1-Channel Audio with DAC
  • For Windows 11 (64-Bit)

140,000 L

S’ka stok

MSI MEG Z890 GODLIKE

MSI GODLIKE Design

Dynamic Dashboard III
A built-in 3.99″ color LCD screen allows you to monitor your hardware performance in real-time or display personalized graphics.
EZ Link
MSI’s EZ Link design helps to simplify installation by consolidating most of the front panel, fan, and RGB headers into the EZ Bridge and EZ Control Hub.
The EZ Bridge, which holds the LCD screen, magnetically attaches to the motherboard and attaches directly to the EZ Control hub with a flexible cable.
Ultra Performance
Power Solution
Unleash and sustain the maximum performance with a digital PWM IC design with a 24+2+1+1 Duet Rail Power System.
By combining dual power connectors and 110A Smart Power Stage, the MEG Z890 GODLIKE is ready for high-end processors and hardware.
Optimized PCB Design
The 10-layer PCB design features 2 ounces of copper and has been optimized for higher bandwidth and faster transfer speeds.
DDR5 Memory Support
High-performance DDR5 memory works with a dedicated SMT welding process and MSI Memory Boost technology to deliver exceptional performance.
Ultra Engine
Multiple CPU and memory overlocking features included in the Click BIOS X tool allow you to quickly and easily fine-tune performance.
Frozr Design
Maintain optimal temperatures with magnetic double-sided M.2 shield heat sinks, a metal backplate, aluminum cover, direct touch cross heatpipes, and more.
Wi-Fi 7
Wi-Fi 7 (802.11be) introduces higher speeds, wider channels, improved efficiency, and reduced latency over Wi-Fi 6 (802.11ax), with maximum speeds of up to 5.8 Gb/s.
DIY Friendly
PCIe 5.0
Doubling the speed of the previous generation, the PCIe 5.0 x16 interface can reach 128 GB/s.
SMT PCIe Slots
The advanced SMT (Surface Mount Technology) PCIe slot diminishes interference and electrical noise to fully support the PCI-E 5.0 signal.
They are reinforced with Steel Armor II technology to support heavy graphics cards.
Steel Armor II
Compared to the previous generation, Steel Armor II’s weight endurance has increased by 21%, ensuring excellent signal transmission quality.
M.2 XPANDER-Z Slider Gen 5
Add two additional M.2 PCIe 5.0 SSDs to your system using the included expansion card, which features an EZ slide design for simplified installation.
Dual 70mm double-ball bearing fans help to maintain optimal temperatures.
Thunderbolt 5
The included THUNDERBOLTM5 expansion card features two Thunderbolt 5 ports, each of which allow you to connect up to 80 Gb/s devices and 8K monitors with 27W Power Delivery.
EZ PCIe Release
An easy-to-access physical button release mechanism helps to remove any PCIe card with a single tap, making it easier to upgrade to a new GPU or other compatible device.
EZ M.2 Clip II
MSI’s EZ M.2 CLIP II makes SSD installation seamless. Insert the SSD into the M.2 slot and press it down to lock it in place with the clip.
Flicking the clip outward lets you remove the SSD. Use the EZ M.2 Clip II remover tool to detach or reposition the clip on the motherboard.
Flash BIOS
Flash the BIOS with only a connected power supply and a flash drive. No CPU or memory required.
Clear CMOS
Restore the BIOS to its default settings with the push of a button.

MSI MEG Z890 GODLIKE

Chipset
Intel Z890
CPU Socket
LGA 1851
Memory Slots
4x 288-Pin
Memory Support
DDR5 MT/s
Storage Slots
1x M.2 (M Key) 2260, 2280 (PCIe 5.0 x4)
2x M.2 (M Key) 2260, 2280 (PCIe 4.0 x4)
2x M.2 (M Key) 2260, 2280, 22110 (PCIe 4.0 x4)
1x M.2 (M Key) 2242, 2280 (PCIe 5.0 x4, PCIe 4.0 x4)
2x M.2 (M Key) 2580 (PCIe 5.0 x4)
Expansion Slots
2x PCIe 5.0 x16
1x PCIe 4.0 x4
Wi-Fi
Wi-Fi 7 (802.11be); Tri-Band (2.4, 5, & 6 GHz) with MU-MIMO Support
Form Factor
E-ATX
CPU
Chipset
Intel Z890
CPU Socket
LGA 1851

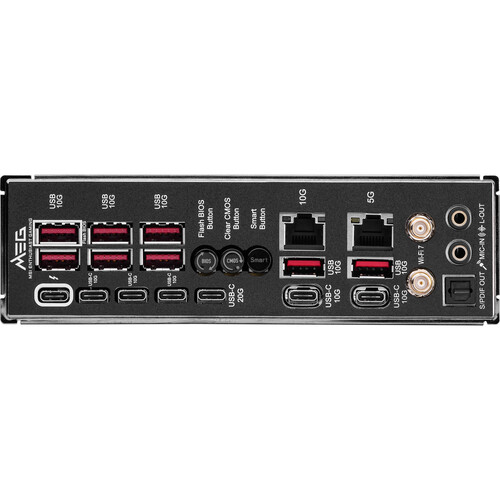

Back Panel I/O
USB
1x USB-C (USB 3.2 Gen 2×2)
5x USB-C (USB 3.1/3.2 Gen 2)
8x USB-A (USB 3.1/3.2 Gen 2)
Thunderbolt
1x Thunderbolt 4
Display
No Dedicated Display Ports (Video Signal via USB-C)
Audio
2x 1/8″ / 3.5 mm
Ethernet / Controller
1x 5GbE
1x 10GbE
Wi-Fi Antenna
2x Connector
Buttons
BIOS Flashback, Clear CMOS
Memory
Memory Slots
4x 288-Pin
Memory Support
DDR5 MT/s
Maximum Capacity
256 GB
Channel Architecture
Dual Channel
ECC Support
Non-ECC Unbuffered
Storage Expansion
SATA
4x SATA III
Storage Slots
1x M.2 (M Key) 2260, 2280 (PCIe 5.0 x4)
2x M.2 (M Key) 2260, 2280 (PCIe 4.0 x4)
2x M.2 (M Key) 2260, 2280, 22110 (PCIe 4.0 x4)
1x M.2 (M Key) 2242, 2280 (PCIe 5.0 x4, PCIe 4.0 x4)
2x M.2 (M Key) 2580 (PCIe 5.0 x4)
Optane Memory Support
No
RAID Support
RAID 0, 1, 5, 10 (SATA)
RAID 0, 1, 5, 10 (M.2)
Internal I/O
Expansion Slots
2x PCIe 5.0 x16
1x PCIe 4.0 x4
USB
2x USB 3.0 / 3.1/3.2 Gen 1 Header (Supports 4 USB-A Port)
1x USB 2.0 Header (Supports 2 USB-A Port)
Air Cooling
1x 4-Pin CPU
7x 4-Pin System
Liquid Cooling
1x Water Flow-Rate Sensor
2x 4-Pin Pump
Power Connectors
1x 24-Pin Mainboard
3x 8-Pin ATX
Security
Chassis Intrusion, TPM Module
LED Header
6x RGB
Diagnostics
Clear CMOS
BIOS
ROM
2x 256 Mb
Front Panel I/O
Front Panel I/O
AAFP, USB 3.2 Gen 2×2, Thunderbolt 4
Audio
Audio Codec
Realtek ALC4082 (7.1-Channel)
DAC
ESS® ES9219 QUAD DAC
Wireless
Wi-Fi
Wi-Fi 7 (802.11be); Tri-Band (2.4, 5, & 6 GHz) with MU-MIMO Support
Bluetooth
5.4
Physical
Form Factor
E-ATX
Dimensions
12 x 10.9″ / 304.8 x 276.9 mm
