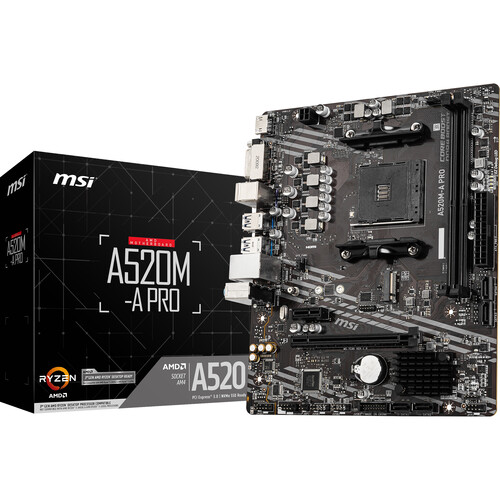

MSI PRO A520M-A AM4

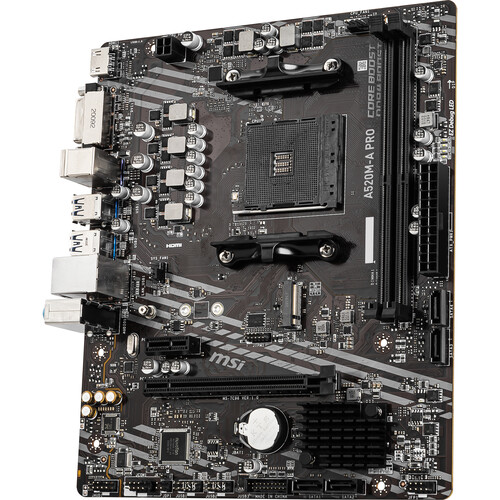

MSI PRO A520M-A AM4 - Figura 2
,

MSI PRO A520M-A AM4

Gjendja:

Ka stok

MSI PRO A520M-A AM4

  • Micro-ATX Form Factor
  • AMD A520 Chipset
  • AM4 Socket
  • 2 x Dual-Channel DDR4-4600 (OC)
  • 4 x SATA III, 1 x M.2
  • 1 x PCIe 3.0 x16 Slot
  • 1 x PCIe 3.0 x1 Slot
  • Realtek ALC892/ALC897 Codec
  • Gigabit Ethernet

7,000 L

Ka stok

MSI PRO A520M-A AM4

AMD A520 Chipset

Get support for Gen 3 Ryzen processors utilizing the AM4 socket, thanks to the AMD A520 chipset.

Fan Control via BIOS and Software

MSI motherboards let you manage speeds and temperatures for all your system and CPU fans.
Total Fan Control allows you check your primary system characteristics in a simplified graphical interface.
You can also set up to four temperature targets for CPU and motherboard, which will adjust the fan speeds automatically.
Automatic Detection of DC or PWM Mode
Fan headers automatically detect fans running in DC or PWM mode for optimal tuning of fan speeds and silence.
Hysteresis support allows your fans spin up smoothly, ensuring quiet operation.

EZ Debug LED

Onboard LEDs for key components will indicate the source of the problem so you know exactly where to look to get up and running again.

Double ESD Protection

Double ESD protection improves the grounding layer around the mounting holes, preventing static discharge surges from damaging the motherboard.

2oz Copper PCB

An enhanced PCB design with 2oz thickened copper increases conductivity, improving heat dissipation and performance reliability during overclocking.

A-XMP

Enable the A-XMP profile with auto power settings for optimized memory speed and stability.

Core Boost

Core Boost technology allows for precise and undistorted current delivery to the CPU.
In addition to multi-core CPU support, Core Boost also complements CPU overclocking.

Isolated Audio Design

Like a dedicated sound card, audio components and circuits are located on a reserved motherboard section and electrically isolated.

Separate Audio Layers

Using separated layers in the PCB, this motherboard ensures accurate sound quality for both left and right audio channels.

Click BIOS 5

Fine-tune the motherboard for gaming performance, efficiency, or overclocking.
Conveniently flash or upgrade the BIOS in a few minutes from the CMOS Setup Utility.
Or, get immediate access to your critical hardware information such as temperature, memory capacity, clock speed, and voltage to view performance in real time.

Enter the Dragon Center

Dragon Center unifies a suite of MSI software utilities into a single centralized application.
Take control of advanced motherboard features such as color calibration, live updates, user scenarios, hardware monitoring, overclock settings, MSI Total Fan Control, data-transfer device optimization, and product registration.
Chipset
AMD A520
CPU Socket
AM4
Memory Slots
2x 288-Pin
Memory Support
DDR4 1866, 2133, 2400, 2667, 2800, 2933, 3000, 3066, 3200, 3466, 3600, 3733, 3866, 4000, 4133, 4266, 4400, 4600 MHz
M.2
1x M Key 2242, 2260, 2280 (PCIe 3.0 x4, SATA III)
Expansion Slots
1x PCIe 3.0 x16
1x PCIe 3.0 x1
Wi-Fi
No
Form Factor
Micro-ATX
CPU
Chipset
AMD A520
CPU Socket
AM4
Back Panel I/O
USB
4x USB-A (USB 3.0 / 3.1/3.2 Gen 1)
2x USB-A (USB 2.0)
Thunderbolt
No
Display
1x HDMI 1.4
1x DVI-D
Audio
3x 1/8″ / 3.5 mm
Ethernet / Controller
1x Realtek RTL8111H Gigabit
PS/2
2x PS/2
Memory
Memory Slots
2x 288-Pin
Memory Support
DDR4 1866, 2133, 2400, 2667, 2800, 2933, 3000, 3066, 3200, 3466, 3600, 3733, 3866, 4000, 4133, 4266, 4400, 4600 MHz
Maximum Capacity
64 GB
Channel Architecture
Dual Channel
ECC Support
Non-ECC, ECC (Non-ECC Mode) Unbuffered
Storage Expansion
SATA
4x SATA III
M.2
1x M Key 2242, 2260, 2280 (PCIe 3.0 x4, SATA III)
U.2
No
RAID Support
RAID 0, 1, 10 (SATA)
RAID 0, 1 (M.2)
Internal I/O
Expansion Slots
1x PCIe 3.0 x16
1x PCIe 3.0 x1
USB
1x USB 3.0 / 3.1/3.2 Gen 1 Header (Supports 2 USB-A Port)
2x USB 2.0 Header (Supports 4 USB-A Port)
Multi-GPU Support
No
Air Cooling
1x 4-Pin CPU
1x 4-Pin System
Power Connectors
1x 24-Pin Mainboard
1x 4-Pin ATX
Security
Chassis Intrusion, TPM Module
Diagnostics
Clear CMOS
BIOS
ROM
256 Mb
Front Panel I/O
Front Panel I/O
AAFP, USB 3.0 / 3.1/3.2 Gen 1
Audio
Audio Codec
Realtek ALC892/ALC897 (7.1-Channel)
DAC
No
Wi-Fi
No
Bluetooth
No
Software
OS Compatibility
Windows 10
Physical
Form Factor
Micro-ATX
Dimensions
7.9 x 9.3″ / 20 x 23.6 cm
Packaging Info
Package Weight
1.635 lb
Box Dimensions (LxWxH)
10.3 x 10.2 x 2.3″
