PSU 600W 80+ BE QUIET! SYSTEM POWER 9
PSU 600W 80+ BE QUIET! SYSTEM POWER 9 - Figura 2
PSU 600W 80+ BE QUIET! SYSTEM POWER 9 - Figura 3
,

PSU 600W 80+ BE QUIET! SYSTEM POWER 9

Gjendja:

S’ka stok

PSU 600W 80+ BE QUIET! SYSTEM POWER

  • Rock-solid stability with 2 strong 12V-rails
  • DC-to-DC technology for tight voltage regulation
  • 4 PCIe connectors for powerful GPUs
  • Temperature-controlled 120mm fan reduces system noise
  • Stand-by drain of less than 0.15 watts
  • 80 PLUS® Bronze efficiency (up to 89%)
  • Attractive black sleeved cables
  • Complete suite of top safety features
  • Meets latest Intel® C6/C7, ErP and Energy Star 6.1 guidelines
  • 3-year manufacturer’s warranty
  • Product conception, design and quality control in Germany

9,500 L

S’ka stok

PSU 600W 80+ BE QUIET! SYSTEM POWER

Proven Reliability and Good Efficiency

be quiet! System Power 9 600W offers renowned be quiet! reliability and quietness for price-conscious PC builders.

  • Rock-solid stability with 2 strong 12V-rails
  • DC-to-DC technology for tight voltage regulation
  • 4 PCIe connectors for powerful GPUs
  • Temperature-controlled 120mm fan reduces system noise
  • Stand-by drain of less than 0.15 watts
  • 80 PLUS® Bronze efficiency (up to 89%)
  • Attractive black sleeved cables
  • Complete suite of top safety features
  • Meets latest Intel® C6/C7, ErP and Energy Star 6.1 guidelines
  • 3-year manufacturer’s warranty
  • Product conception, design and quality control in Germany

General data

Model System Power 9 600W
Continuous power (W) 600
Peak power (W) –
Form factor Version 2.4
Form factor EPS 12V Version 2.92
Topology DC/DC
Digitally controlled –
Voltage (Vac) 200 – 240
Frequency (Hz) 50
Input current (A) 6
Power factor at 100% load >0.95
Modern standby –
Power consumption in standby (W) <0.15
Average life time (h / 25°C) 100,000
Operating temperature up to (°C) 40

Infographics

Efficiency

80 PLUS certification Bronze (230V EU internal)
Efficiency (%) at 230V, 2% load –
Efficiency (%) at 230V, 10% load 82.5
Efficiency (%) at 230V, 20% load 87
Efficiency (%) at 230V, 50% load 89
Efficiency (%) at 230V, 100% load 86

Fan and cooling technology

Fan High quality fan
Fan size (mm) 120
Bearing technology Sleeve
Motor technology 4-pole fan motor
Max. fan speed (rpm) 2100

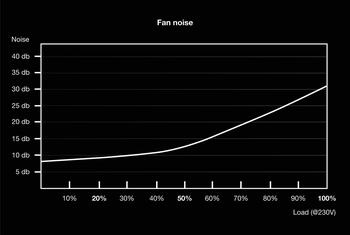

dB(A) at 10% load 8.9
dB(A) at 20% load 9.2
dB(A) at 50% load 12.8
dB(A) at 100% load 31.2

Output

Multi-rail operation (12V rails) 2
12V single rail operation –
Overclocking key –
+3.3V (A) 24
+5V (A) 15
+12V1 (A) 28
+12V2 (A) 22
+12V3 (A) –
+12V4 (A) –
+12V5 (A) –
+12V6 (A) –
-12V (A) 0.3
+5Vsb (A) 3
Max. combined power 12V (W) 576
Max. combined power 12VHPWR (W) –
Max. combined power 3.3V + 5V (W) 120
Hold-up time at 100% load (ms) 17 (@75%)
Hold-up time at 80% load (ms) –
Power good signal (ms) 100 – 500

Cables and connectors

Modular cables –
Sleeved cables –
Flat cables all
Maximum cable length (cm) 91
Cable length to motherboard (cm) 55
No. of cables 6
ATX-Motherboard (20+4-pin) 1
P4+4 (CPU) 1
P8 (CPU) –
P4 (CPU) –
12VHPWR cables –
PCI-e 6+2-pin (GPU) 4
PCI-e 6-pin (GPU) –
SATA 6
PATA 2
FDD (Floppy) –

Protection

OTP (over temperature protection) ✓
OCP (over current protection) ✓
OPP (over power protection) ✓
SCP (short circuit protection) ✓
OVP (over Voltage protection) ✓
UVP (under Voltage protection) ✓
SIP (Surge & Inrush protection) ✓

Safety certification

BSMI –
CB ✓
CCC –
CE ✓
cRUus –
cTUVus –
CU ✓
FCC –
RCM ✓
TÜV ✓
UKCA –

Environmental directives

Energy Star 6.1
ErP ✓
WEEE ✓
RoHS ✓
Triman –

Scope of delivery

Thumb screws –
Screws ✓
Cable ties –
Velcro cable ties –
User manual languages DE, EN, FR
OCK slot bracket with switch / OCK jumper –
SFX-to-ATX adapter bracket –

Casing

Dimensions without cable (L x W x H), (mm) 140 x 150 x 86
Weight (kg) 2.03
Color Black

Service

Warranty (Years) 3
Express replacement service in first year –
International hotline / free of charge ✓ / DE, FR

Logistics data and RRP

Article number BN247
EAN code 4260052186060
Dimensions, package (L x W x H), (mm) 268 x 97 x 195
Gross weight, package (kg) 2.35
Pieces per packaging unit 6
Dimensions, shipping box (L x W x H), (mm) 215 x 311 x 556
Gross weight, shipping box (kg) 14.4
RRP (€) 69.90
