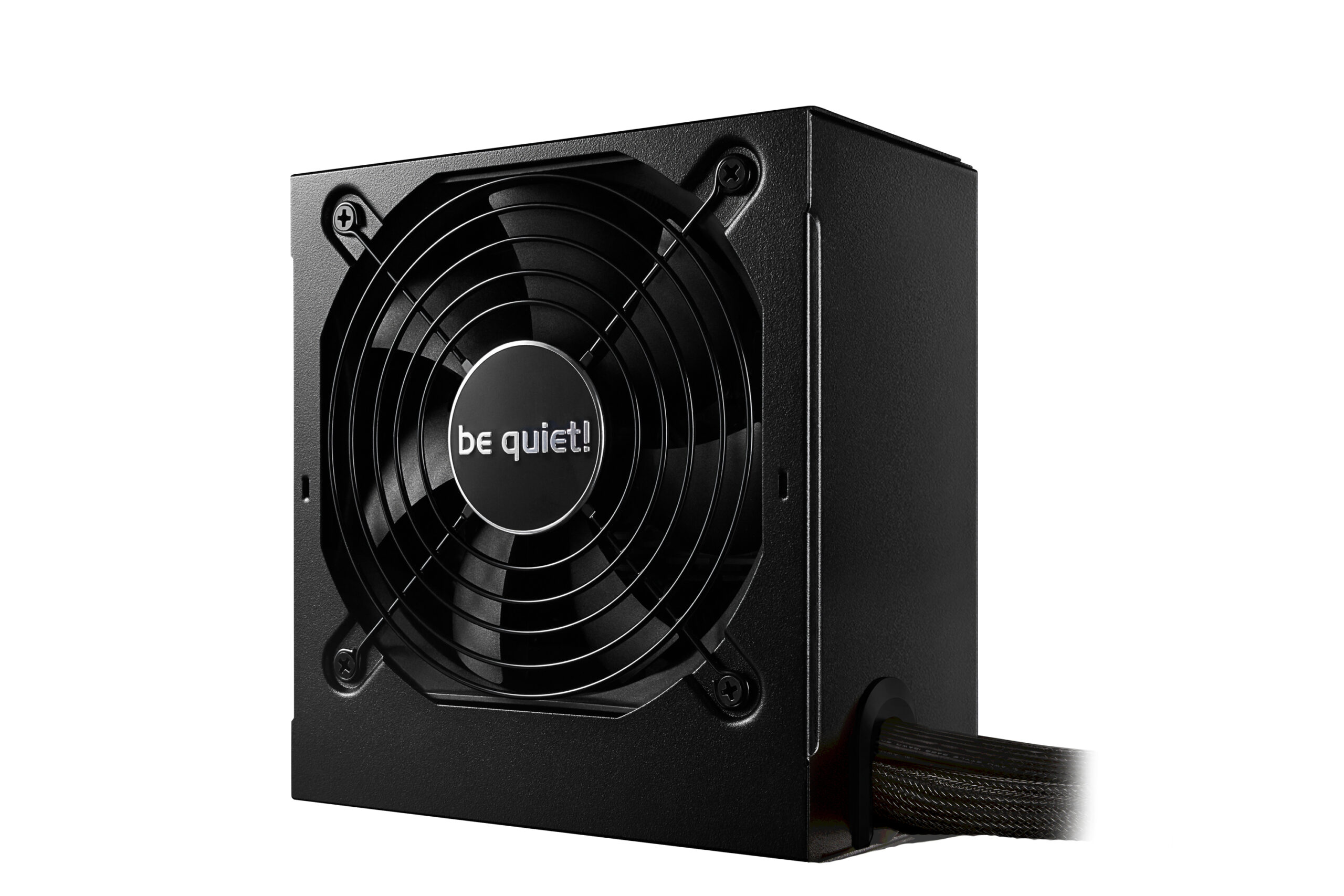

PSU 750W 80+ BRONZE BE QUIET! SYSTEM POWER 10

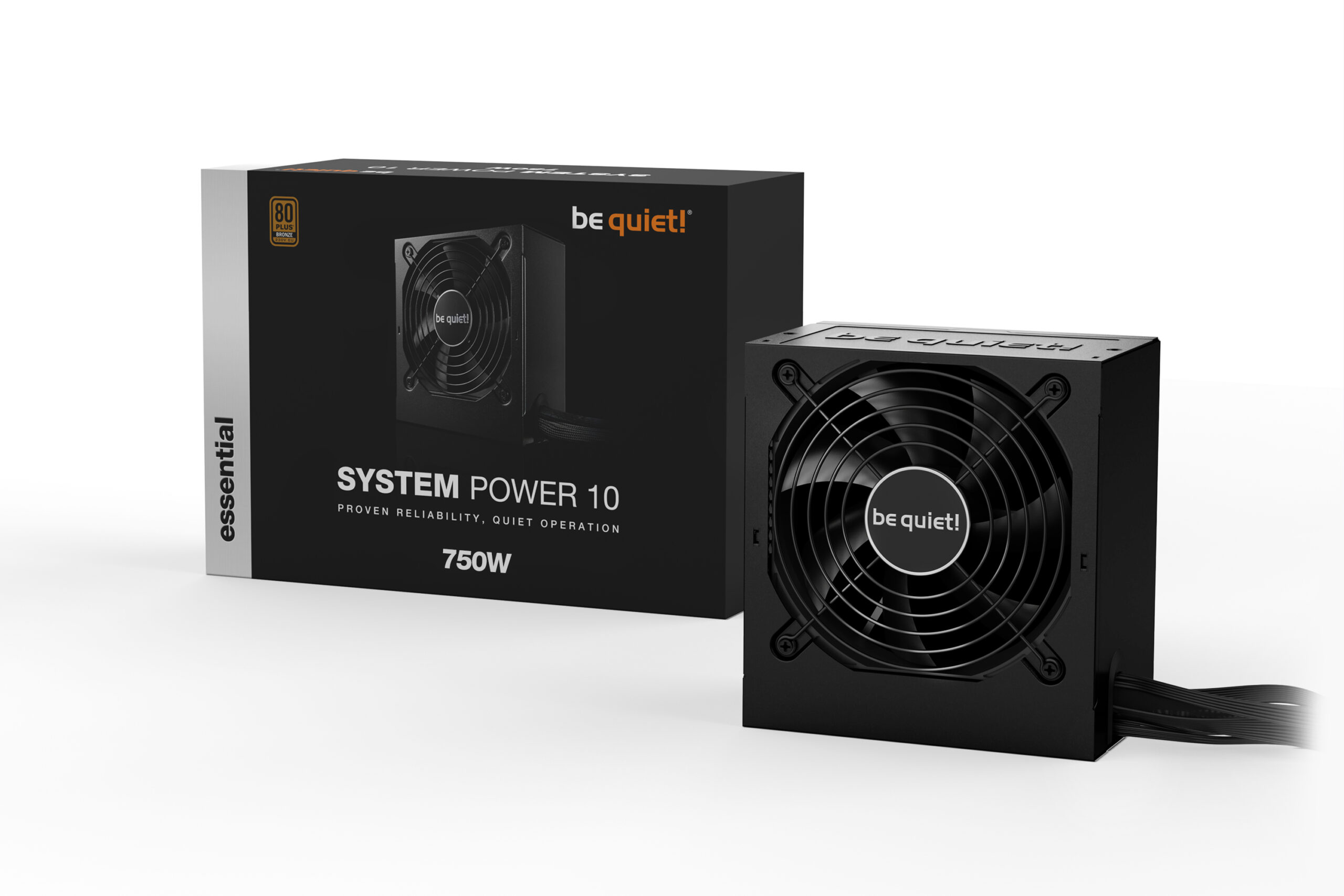

PSU 750W 80+ BRONZE BE QUIET! SYSTEM POWER 10 - Figura 2

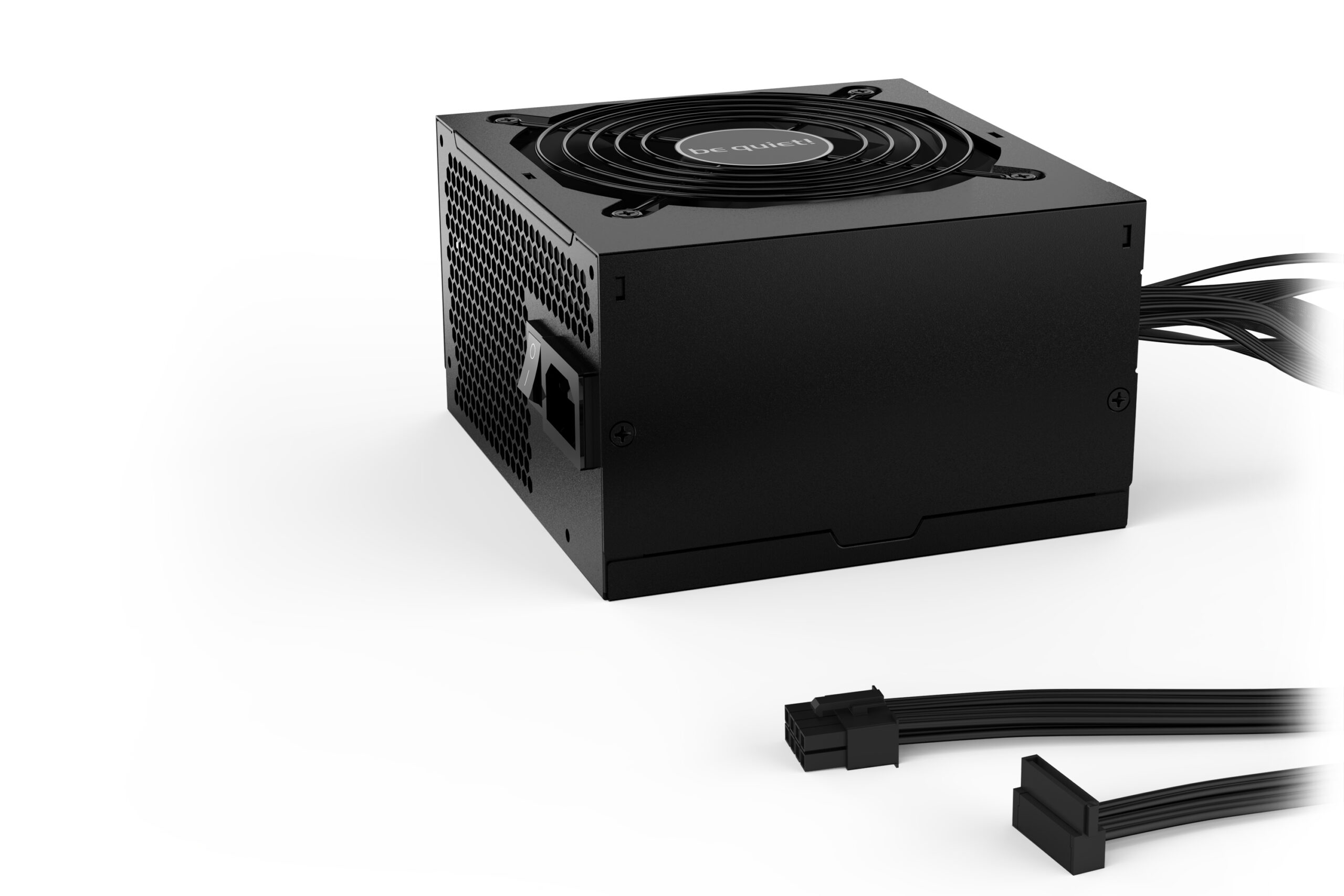

PSU 750W 80+ BRONZE BE QUIET! SYSTEM POWER 10 - Figura 3
,

PSU 750W 80+ BRONZE BE QUIET! SYSTEM POWER 10

Gjendja:

Ka stok

PSU 750W 80+ BRONZE BE QUIET! SYSTEM POWER 10

  • Temperature-controlled 120mm quality fan reduces system noise
  • Rock-solid stability with a strong 12V-rail
  • Tight voltage regulation using DC-to-DC technology
  • Dependable operation to support powerful GPUs
  • Stand-by drain of less than 0.15 watts
  • 80 PLUS® Bronze efficiency (up to 89.1%)
  • Attractive black flat cables
  • Complete suite of top safety features

12,000 L

Ka stok

PSU 750W 80+ BRONZE BE QUIET! SYSTEM POWER 10

System Power 10 750W has been built with price-conscious users in mind that do not want to dispense on reliability and quietness.

Elaborated features such as a temperature-controlled fan and a remarkably low stand-by-drain underline the value System Power 10 750W offers even at entry-level.

  • Temperature-controlled 120mm quality fan reduces system noise
  • Rock-solid stability with a strong 12V-rail
  • Tight voltage regulation using DC-to-DC technology
  • Dependable operation to support powerful GPUs
  • Stand-by drain of less than 0.15 watts
  • 80 PLUS® Bronze efficiency (up to 89.1%)
  • Attractive black flat cables
  • Complete suite of top safety features

General data

Model System Power 10 750W
Continuous power (W) 750
Peak power (W) –
Form factor Version 2.52
Form factor EPS 12V Version 2.92
Topology DC/DC
Digitally controlled –
Voltage (Vac) 200 – 240
Frequency (Hz) 50
Input current (A) 5
Power factor at 100% load >0.95
Modern standby ✓
Power consumption in standby (W) <0.15
Average life time (h / 25°C) > 100,000
Operating temperature up to (°C) 40

Infographics

Efficiency

80 PLUS certification Bronze
Efficiency (%) at 230V, 2% load 66.6
Efficiency (%) at 230V, 10% load 85.1
Efficiency (%) at 230V, 20% load 88.6
Efficiency (%) at 230V, 50% load 89.1
Efficiency (%) at 230V, 100% load 85.7

Fan and cooling technology

Fan Temperature-controlled quality fan
Fan size (mm) 120
Bearing technology Sleeve
Motor technology 4-pole fan motor
Max. fan speed (rpm) 2100
dB(A) at 10% load 8.8
dB(A) at 20% load 8.9
dB(A) at 50% load 13.3
dB(A) at 100% load 34.7

Output

Multi-rail operation (12V rails) 0
12V single rail operation ✓
Overclocking key –
+3.3V (A) 20
+5V (A) 20
+12V1 (A) 62.5
+12V2 (A) –
+12V3 (A) –
+12V4 (A) –
+12V5 (A) –
+12V6 (A) –
-12V (A) 0.3
+5Vsb (A) 3
Max. combined power 12V (W) 750
Max. combined power 12VHPWR (W) 0
Max. combined power 3.3V + 5V (W) 130
Hold-up time at 100% load (ms) –
Hold-up time at 80% load (ms) 26
Power good signal (ms) 100 – 150

Cables and connectors

Modular cables –
Sleeved cables P24
Flat cables P4+4, P8, PCIe, drives
Maximum cable length (cm) 81
Cable length to motherboard (cm) 55
No. of cables 7
ATX-Motherboard (20+4-pin) 1
P4+4 (CPU) 1
P8 (CPU) 1
P4 (CPU) –
12VHPWR cables 0
PCI-e 6+2-pin (GPU) 4
PCI-e 6-pin (GPU) –
SATA 6
PATA 1
FDD (Floppy) –

Protection

OTP (over temperature protection) ✓
OCP (over current protection) ✓
OPP (over power protection) ✓
SCP (short circuit protection) ✓
OVP (over Voltage protection) ✓
UVP (under Voltage protection) ✓
SIP (Surge & Inrush protection) ✓

Safety certification

BSMI –
CB ✓
CCC –
CE ✓
cRUus –
cTUVus –
CU ✓
FCC –
RCM –
TÜV ✓
UKCA ✓

Environmental directives

Energy Star 6.1
ErP ✓
WEEE ✓
RoHS ✓
Triman ✓

Scope of delivery

Thumb screws –
Screws ✓
Cable ties –
Velcro cable ties –
User manual languages DE, EN, ES, FR, PL, RU
OCK slot bracket with switch / OCK jumper –
SFX-to-ATX adapter bracket –

Casing

Dimensions without cable (L x W x H), (mm) 150 x 140 x 86
Weight (kg) 1.95
Color Black
